NOYAFA NF820 AntiInterference Underground Cable Locator High and Low Voltage Design for 220380V

NF820 is a new breakthrough, which are antijamming cable detectors for underground, insidewall or other invisible cable & pipe. The detection range can be up to 2 meters. Besides, NF 820 is even capable of tracing cable in high voltage environment (0~400V). The current or other live devices can " t make influence on it for its antijamming function. It is a practical tool for the engineers, mainly applied in home decoration, cabling installation and telecommunication etc.

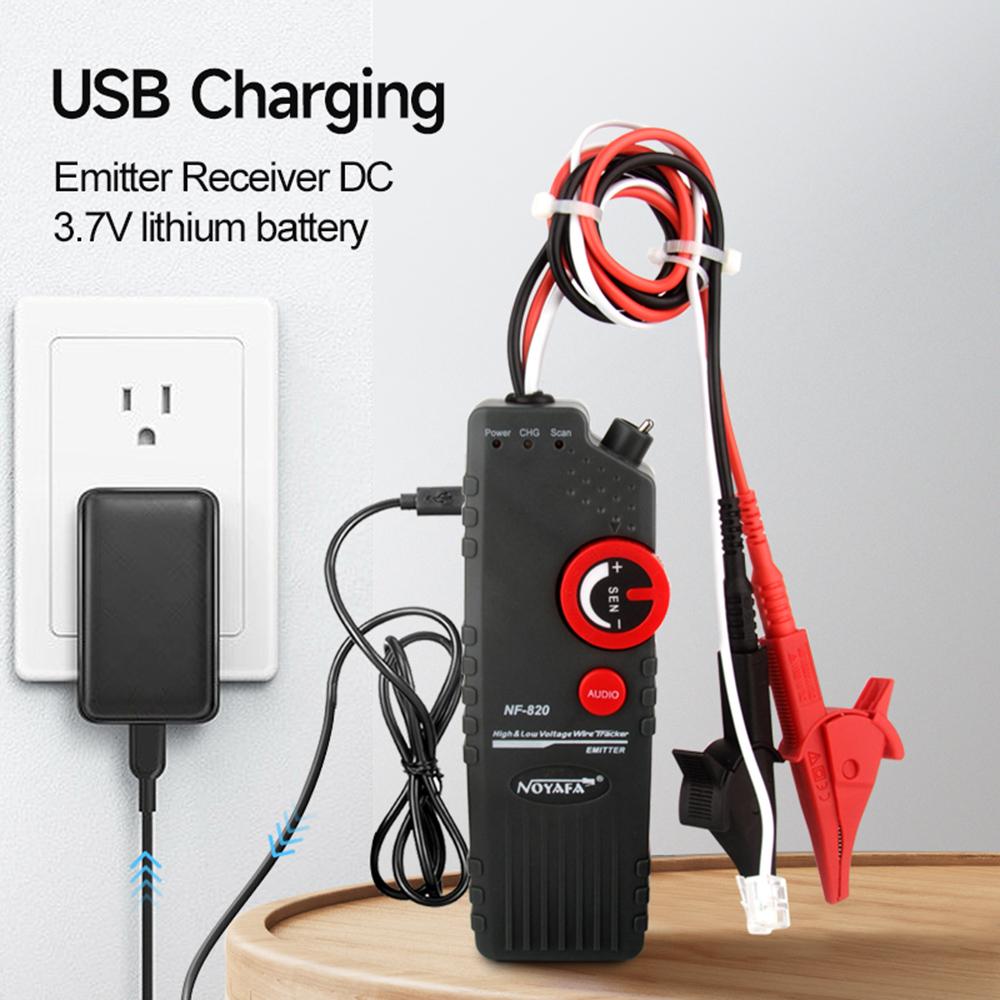

Features: Versatile Wire Tracing: Our underground wire locator is perfect for tracing various metal wires including single metal line, 2core or multicore cable, telephone cable, network cable, and multistrand wire. Deep Detection Distance: With a detection distance of up to 2 meters deep (6.5ft), our wire locator can help you locate wires quickly and easily. Long Locating Length: You can locate wires up to 1000 miles (3280ft) with our underground wire locator, making it ideal for largescale projects. High and Low Voltage Design: Our wire locator is designed to handle 220V AC to avoid burning and damage of the device. It can also trace cable for DCAC power below 400V. UserFriendly Features: Our wire break locator comes with a largecapacity 3.7V lithium battery and can be charged with a USB cable. Additionally, the receiver signal has an indicator light intensity reminder for precise positioning of the cables.

Specifications: Model: NF820 Material: ABS Name: Antijamming underground cable detector Power Supply: Emitter: 3.7V lithium battery 1800mAh

Receiver: 3.7V lithium battery 1100mAh Low Battery Indicate: Emitter: less than 150mA + 10%

Receiver: less than 80mA + 10% Working Current: Emitter: less than 3.5V LED light flashlight

Receiver: Same as Emitter Charging Current: 800mA Signal Transmission Format: Multifrequency pulse

Signal Output Level: 21Vpp Signal Transmission Distance: less than 10km Signal Sensitivity Distance: 0~2m Emitter Size: 152 * 55 * 34mm 5.98 * 2.16 * 1.34in Receiver Size: 252 * 45 * 28mm 9.92 * 1.77 * 1.10in One Set Size: 262 * 135 * 60mm 10.31 * 5.31 * 2.36in Emitter Weight: 143g 5.04oz Receiver Weight: 200g 7.05oz One Set Weight: 343g 12.09oz Package Weight: 500g 17.63oz Package Size: 26.5 * 13.5 * 6cm 10.43 * 5.31 * 2.36in

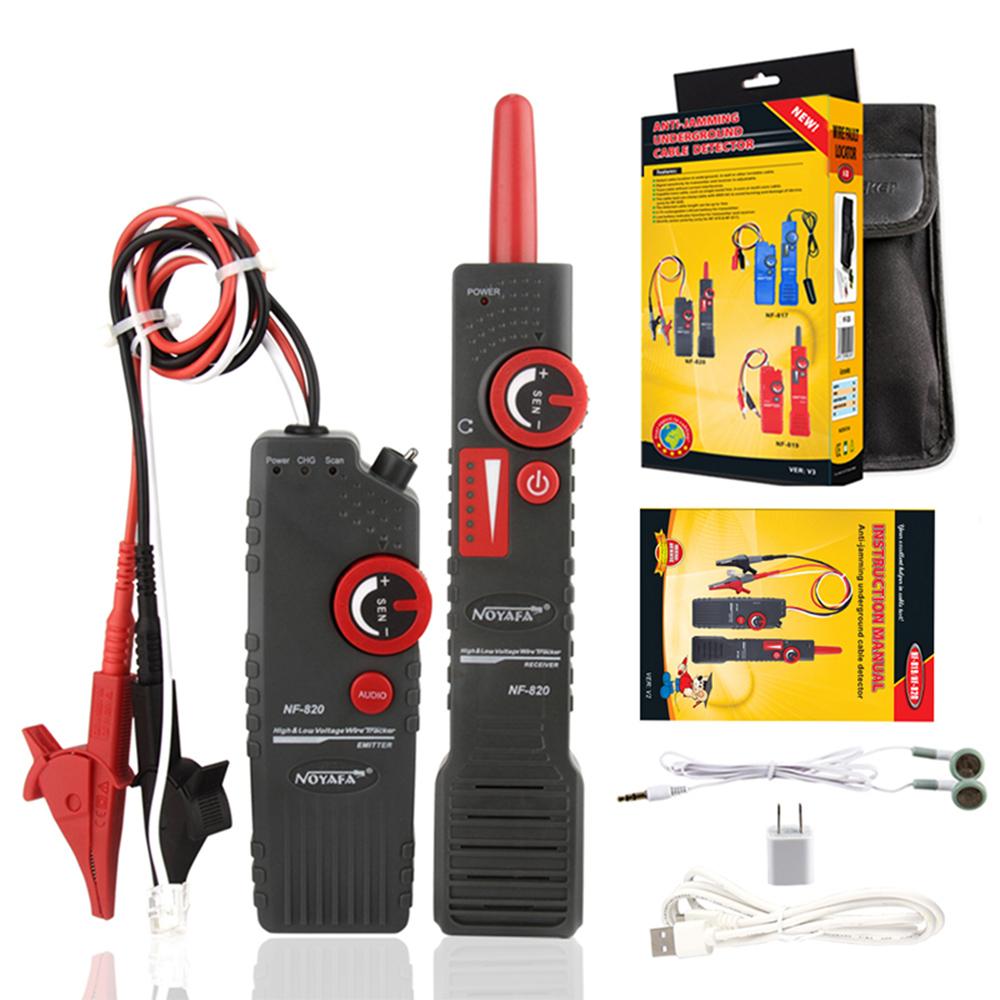

Package List: 1 * Emitter 1 * Receiver 2 * 3.7V Lithium Battery 1 * 5V 1A Charging Adapter 1 * USB Charging Cable 1 * Earphone 1 * Cloth Bag 1 * User Manual (English)
