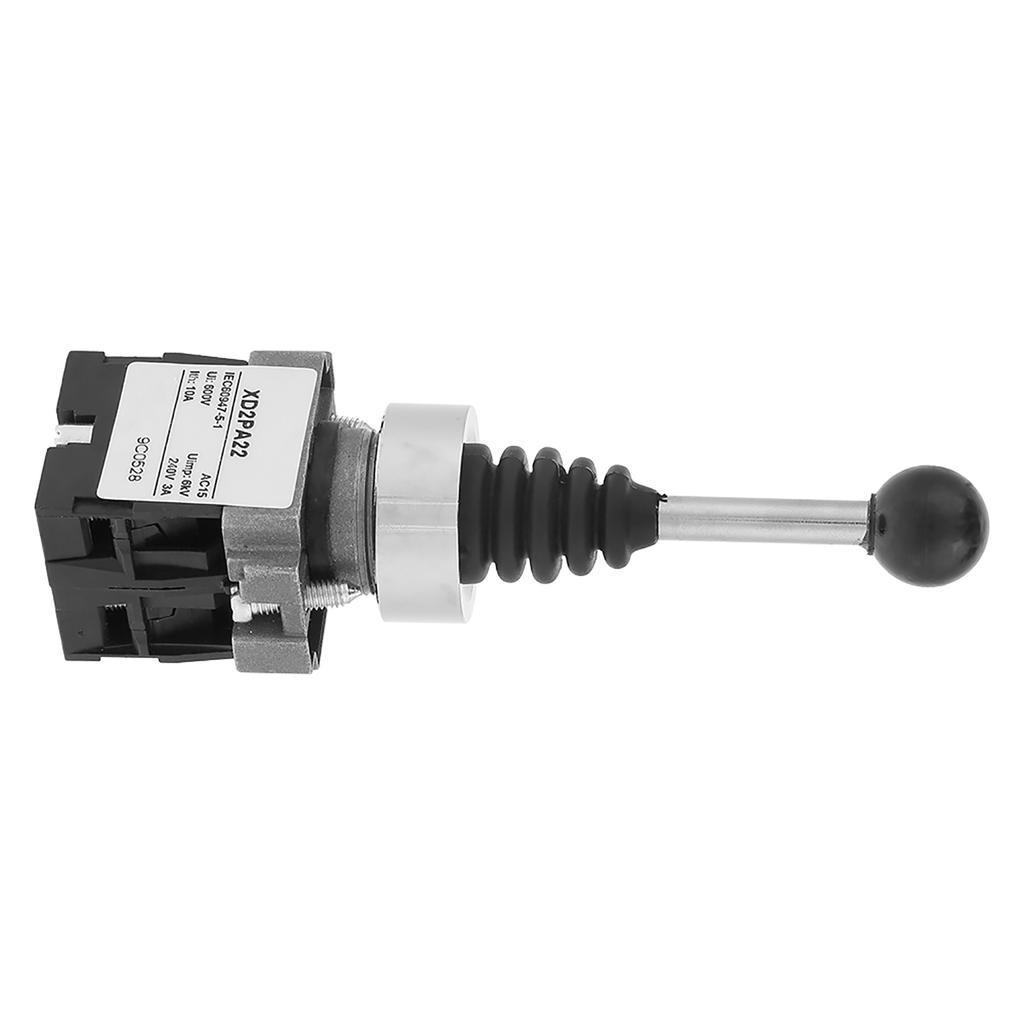

1pc XD2PA22CR 2NO 2position Spring Return Momentary Joy Stick Joystick Switch

Features: The joystick switch is a momentary switch that has 2 normally open contacts. The stick will return to its original position once released. Rubber sleeve cover on stick is resistant to water, oil and dust. Widely used for industrial control AC 50Hz and DC circuits. It can control magnetic starter, contactor, relay and other electrical circuits. Specifications: Model: XD2PA22CR Type: 2position momentary Contact: 2NO Rated Voltage: 0~380V AC (50Hz); 0~220V DC Mounting Hole Diameter: 22mm Electrical Life : >500,000times Mechanical Life: >500, 000times Size: 12.5*4cm4.9*1.6in Operating Temperature: 25~+55 celsius (no ice) Operating Humidity: 45~85percent RH (no condensation) Contact Resistance: less than 50m Ohm Isolation Resistance: more than 100 Ohm Max. Withstand Voltage: 3000V, AC 50Hz Vibratility: 50Hz, amplitude is about 1mm Shock Resistance: >10ms2 (about 10G) IP Rating: IP55 Weight: 124g(approx.) Package Includes: 1 x Switch .The joystick switch is a momentary switch that has 2 normally open contacts The stick will return to its original position once released Rubber sleeve cover on stick is resistant to water, oil and dust Widely used for industrial control AC 50Hz and DC circuits It can control magnetic starter, contactor, relay and other electrical circuits
