Sanwa Denshi Joystick with variable operation iron shaft cover [Silent] JLX-TPML-8YT-SK lever/Equipped switch/Flat plate/With

---------------------------------------------------------------------- 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

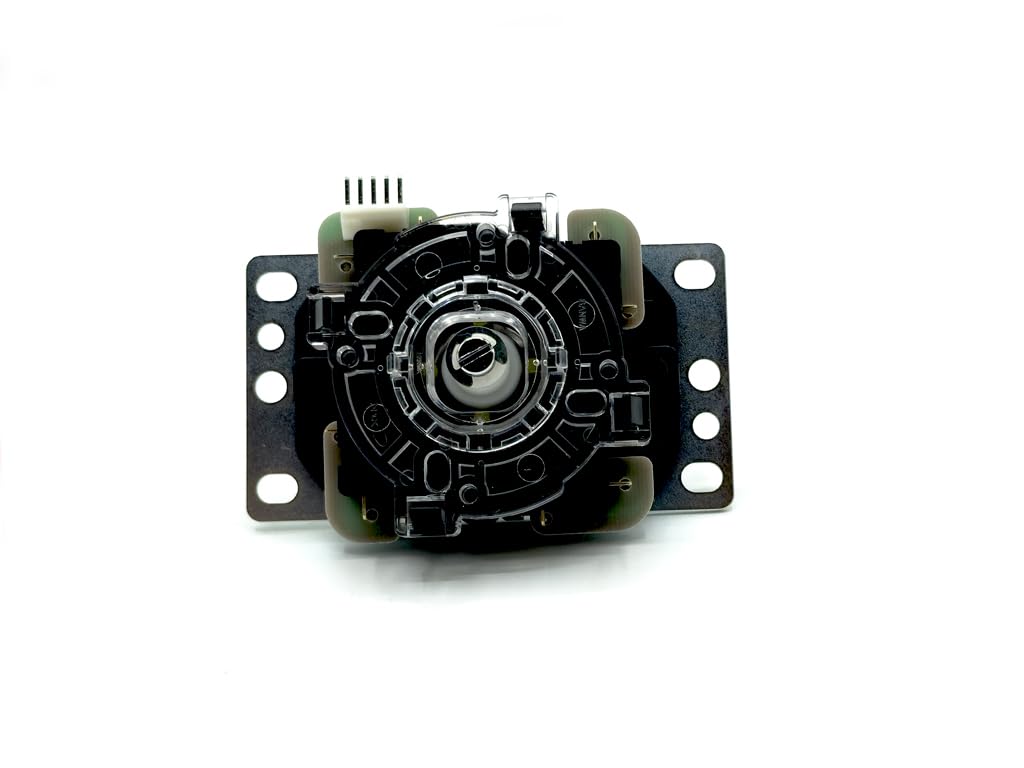

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ---------------------------------------------------------------------- Board type joystick lever/flat iron plate/with shaft cover The latest silent model of the JLX lever series, it is a silent type that does not make the clicking noise peculiar to micro switches. Adopts variable operating position micro leaf switch The operating position of the switch in each direction can be adjusted individually in 5 steps. As shown in the 4th photo, you can remove the center part and attach it by changing the angle. Achieves long life (more than 3 million electrical cycles) This is a silent model of the latest model JLX lever series made by Sanwa Denshi. GT8-X is installed as standard on the guide plate. Compatible with GTN series guide tips. - Adopts a newly developed micro leaf switch with variable operating position. - The operating position of the switch in each direction can be adjusted individually in 5 steps. - Has a different structure from conventional microswitches and has a long lifespan (more than 3 million electrical cycles). Can be attached to most commercially available arcade sticks, Please note that some products cannot be installed. How to adjust the operating position Please refer to the third product image. Adjust the position using a flathead screwdriver. To change the operating position, align each numbered circle with the arrow position (center). Operating position variable amount (mm) 1) +0.3 2) +0.15 3) 0 (reference value) 4) -0.1 5) -0.2 The higher the value is, the faster the input (switch ON) will be. -, input becomes slower. Make adjustments with the switch not pressed.
