AKG WMS40 PRO MINI2 INSTRUMENTAL SET DUAL Wireless Musical Instrument Set of 2

[Product Infomation]

Brand : AKG Materials : metal, Plastic

[Product Description]

・Number of outputs 2 ・Terminal Standard phone jack (3P) ・Impedance 1.3kΩ ・Maximum output level 5.7dBu ・SN ratio 110dB (A weight)

AKG WMS40 PRO MINI2 INSTRUMENTAL SET DUAL Wireless musical instrument set of 2 A wireless series released by the AKG brand that boasts amazing cost performance. Adopts the 800MHz band (B band), which has high transmittance through shielding objects such as walls and the human body, and has excellent stability. With a range of approximately 20 meters in a place with good visibility, it can be used for a wide range of purposes such as live music venues, school festivals, lectures, and various events.

VOCAL SET DUAL allows you to use two bodypack type transmitters at the same time. It can be used in combination with various types of microphones, such as guitar + bass, twin guitar, lavalier type, headset type, etc., for a variety of uses.

WMS40 PRO MINI is extremely easy to operate, even for first-time wireless users. Just turn on the transmitter and receiver, adjust the output level, and you're ready to use. No complicated settings are required. The receiver is equipped with an LED that indicates that the power is on, an LED that indicates that radio waves are being received normally, and an LED that warns of excessive signal input. You can also check the remaining battery power on the transmitter's LED, allowing you to understand the operating status at a glance. Additionally, the transmitter is equipped with a slide-type power switch that allows you to easily switch OFF/MUTE/ON at your fingertips.

WMS40 PRO MINI is small and lightweight and can be used in a variety of situations. Both the 2-channel receiver and 1-channel receiver are compact with a width of 134mm and a depth of 132mm, so they can be installed anywhere. Optional rack mount hardware is also available, allowing up to two receivers to be installed in an EIA 1U space. The bodypack type transmitter is extremely small and lightweight, so you won't even notice that you're wearing it. Equipped with a clip, it can be easily attached to a belt, etc. In addition to the included instrument connection cable, the bodypack transmitter can be used with AKG's high-quality headworn, earhook, lavalier, or instrument microphone as an option. Equipped with a gain adjustment function, clear sound pickup is possible regardless of the connected instrument/microphone.

*The maximum number of channels that can be operated simultaneously is 2. PRO MINI2 INSTRUMENTAL SET DUAL is a 2-channel model, so one set can be used within the same venue.

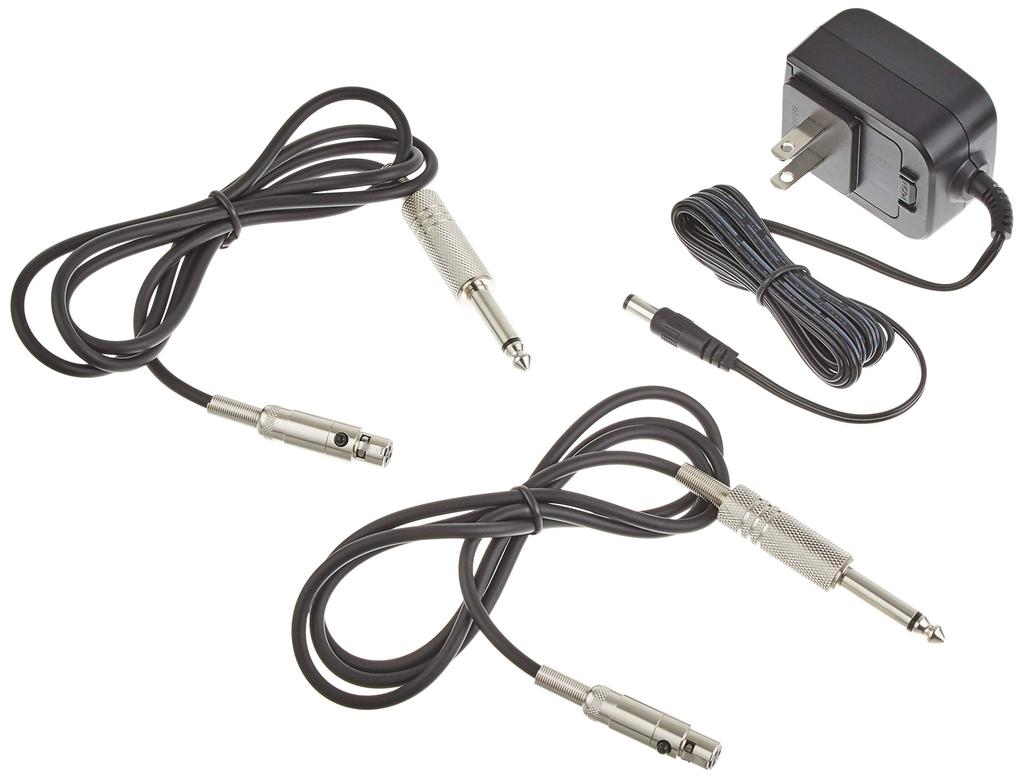

WMS40 PRO MINI2 INSTRUMENTAL SET DUAL 2-channel receiver (SR40 MINI PRO2), bodypack transmitter (PT40 MINI PRO) x 2, AA alkaline batteries x 2, musical instrument connection cable (MKG L) x 2, power adapter, Japanese instruction manual

2 channel receiver (SR40 MINI PRO2) Number of outputs 2 Terminal Standard phone jack (3P) output Impedance 1.3kΩ Maximum output level 5.7dBu SN ratio 110dB (A weight) Power supply DC12V (0.5A), AC adapter (AC100V, 50/60Hz) Dimensions (W × H × D) 134 × 43 × 132mm (excluding protrusion) Mass 524g

Bodypack type transmitter (PT40 MINI PRO) Antenna type 1/4 wavelength whip antenna Input terminal Mini XLR (3P) Maximum input level 12dBu Gain adjustment range 0 ~ 30dB Power supply AA alkaline battery x 1 or AA nickel metal hydride rechargeable battery x 1 or AA lithium battery x 1 Battery life Alkaline batteries: Approximately 30 hours, Ni-MH rechargeable batteries: Approximately 30 hours, Lithium batteries: Approximately 30 hours *Varies depending on usage environment. Dimensions (W × H × D) 60 × 72 × 22mm (excluding protrusion) Mass 54g
